Application method: The continuous or intermittent motion of the conveyor belt is used to transport various items of different weights, which can not only transport various bulk materials, but also transport various cartons, packaging bags and other small pieces of goods, which are widely used.

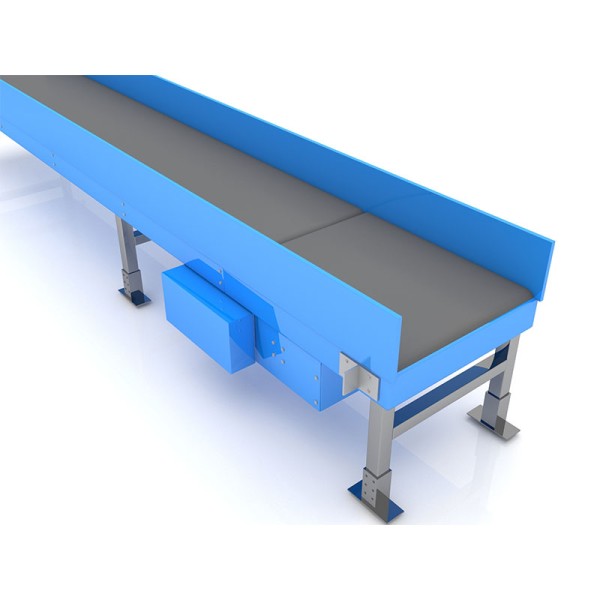

Belt Conveyor
Description
Descripition
Specification
Solutions
Case
Application Method:
The continuous or intermittent motion of the conveyor belt is used to transport various items of different weights, which can not only transport various bulk materials, but also transport various cartons, packaging bags and other small pieces of goods, which are widely used.
| Specification | |
Max external size | 900mmX750mmX650mm |
Min external size | 200mmX150mmX150mm |
Item weight | 0.5KG~50KG |
Conveying load | Dynamic load：50KG/M²， Static load：180KG/M² |
Belt width | 1400mm |
Conveying speed | 30~90m/min |
Side guide height | 300mm and 500mm higher than the conveyor |
Drive mode | Integral motor reducer |
Structure | Steel frame, sliding bed type |
E-commerce Logistics System
Since entering the Chinese market in the 1990s through its main air express and domestic private express processing system business, PGSL has acquired FedEx Beijing Port, DHL Hong Kong Hub, TNT (East China, North China), SF (SF Express National Main Distribution Center), YUNDA (Yunda North China, East China, South China) and other domestic express companies, various distribution center projects have become the inevitable choice for the rapid development of many logistics express companies.
Chongqing Debang
Project overview：
Length of conveying line ：4.39 KM
Number of automatic lines ： 19
Steel frame structure ：14,800 sqm
Commencement date ：2021.10.24
Delivery date ：2022.3.3 Core
Capacity：
Medium items：36,000 p/h；
Small items：10,000 p/h.
Wuhan JD
JD customized warehouse (provided with matrix platform）：
Project Overview：
Length of conveying line：6.65KM
Number of automatic lines： 22 lines
Steel frame structure：14,000 sqm
Commencement date：2021.09.25
Delivery date：2022.3.1
Capacity：
medium items：55,000p/h； Small items：40,000p/h
