Application method: Used in the logistics e-commerce freight industry parcel volume measurement, bar code scanning, weighing integration of the operating system.

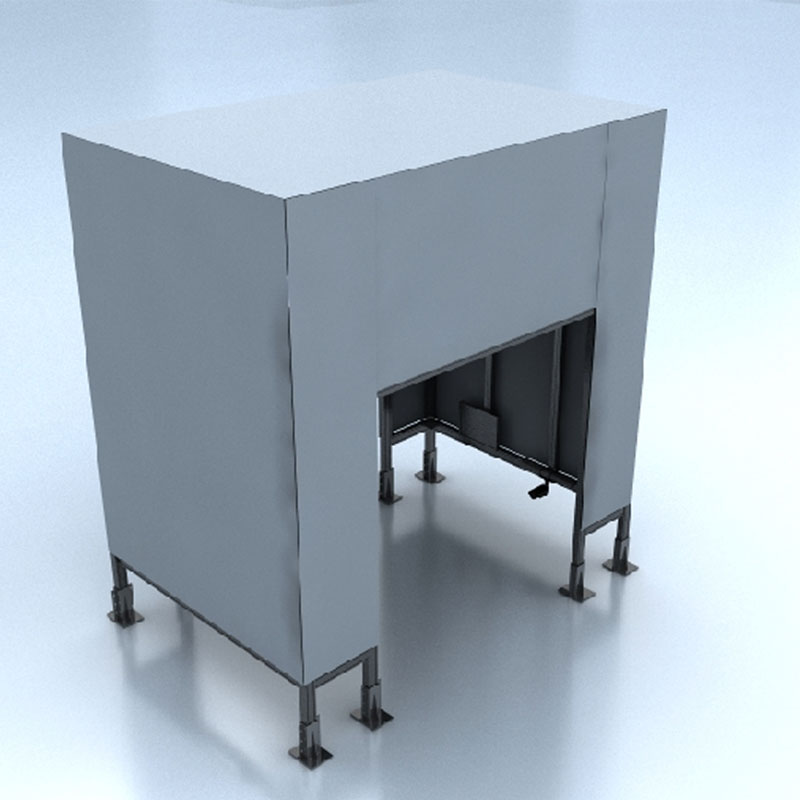

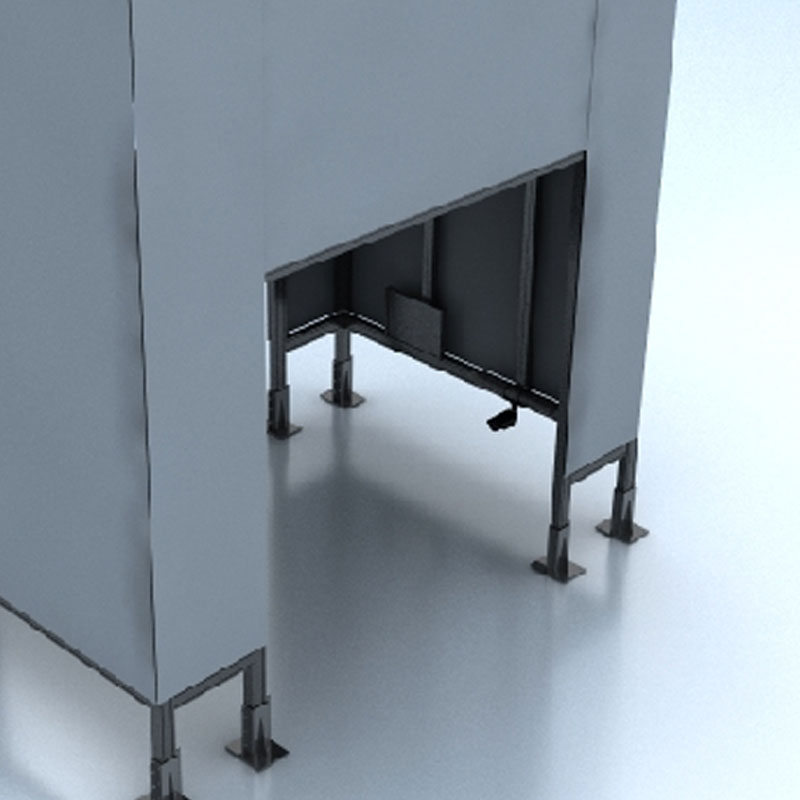

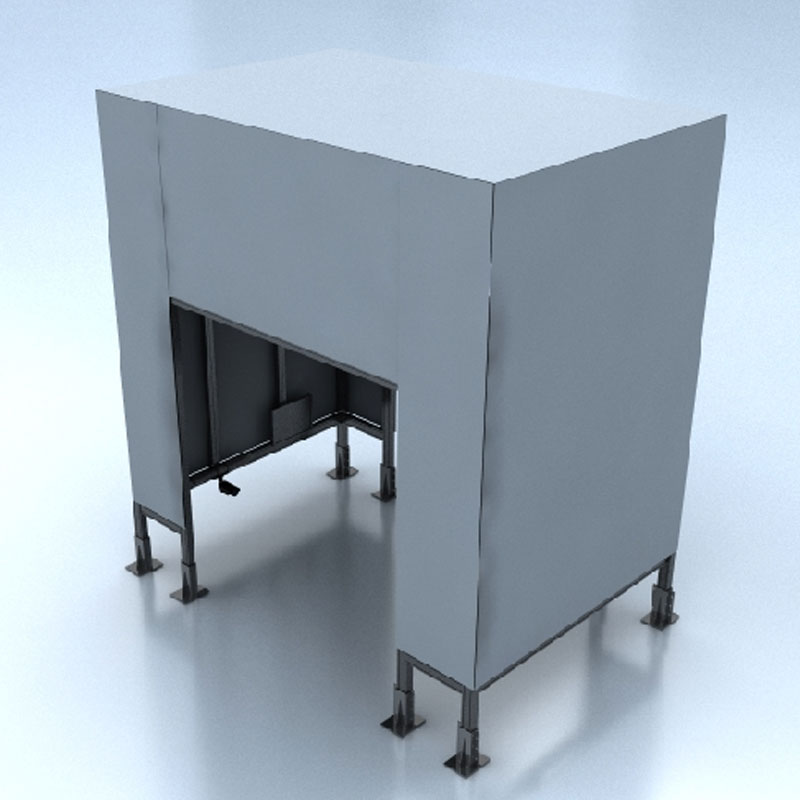

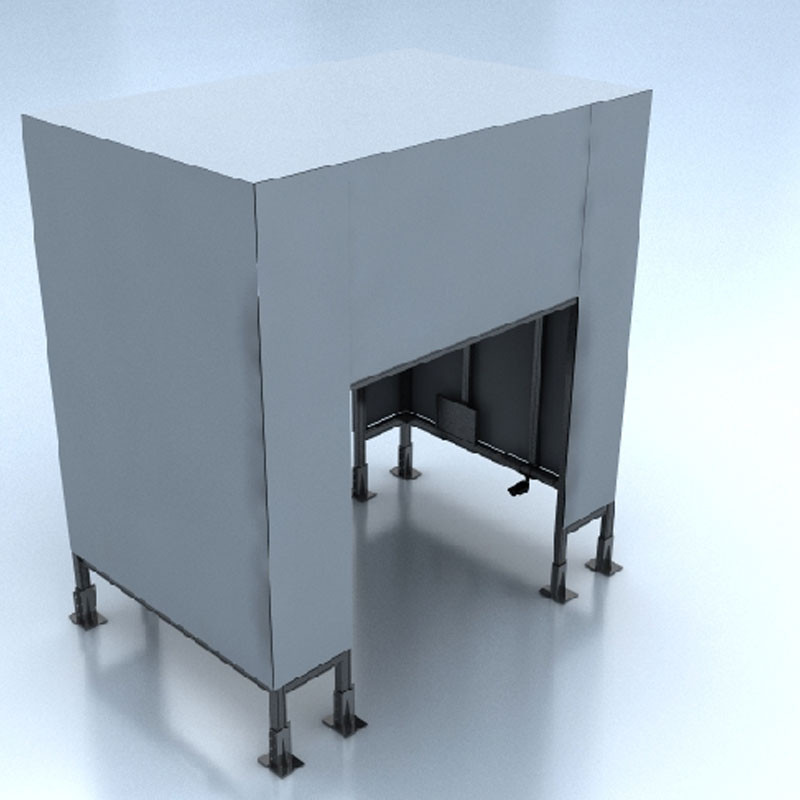

DWS
Description
Descripition
Specification
Solutions
Case
Application Method:
Used in the logistics e-commerce freight industry parcel volume measurement, bar code scanning, weighing integration of the operating system.
| AGV Specification | |
Conveying speed | ≤2.2m/s(132m/min) |
Efficiency | ＞5000p/hour(no complement ) |
Item size | Min：160(L)×100(W)×10(H)mmMax：1000(L)×800(W)×700(H)mm |
Equipment noise | ≤72dB |
Express delivery system integration
Through the actual situation of the express industry in terms of more stringent requirements for the inbound, unloading, receiving, scanning, X-ray machine security inspection, weighing, unpacking, sorting, packaging, and outbound fast loading of goods, PGSL, With the experience over 150 airport baggage conveying system projects and air cargo terminal projects around the world, has carried out in-depth cooperation with well-known international and domestic express companies. At the same time, according to the actual situation of technology, labor force and national policies in the domestic express delivery industry, it provides automatic and semi-automatic express delivery solutions of different standards for the express delivery industry, and accelerates the transformation and upgrading of customers in the express delivery industry.
Chongqing Debang
Project overview：
- Length of conveying line ：4.39 KM
- Number of automatic lines ： 19
- Steel frame structure ：14,800 sqm
- Commencement date ：2021.10.24
- Delivery date ：2022.3.3
Core equipment:
- Item singulation: 10 sets
- DWS：19 sets
- Steerable wheel sorter：91 units
Capacity：
- Medium items：36,000 p/h；
- Small items：10,000 p/h
Nanjing post
It is the first distribution center that adopts lifting operation in the domestic express industry. A new slant-belt sortation system is independently developed by our company and successfully tested in this project for the first time.
During the Double 11 Festival in 2015, it was rated as the site with the largest processing volume among all the national postal systems.
