Application method: The electric drum provides the conveying power; the servo motor drives the link mechanism to provide the steering power, the steering angle: 0~60°, and the servo motor drives the link mechanism to drive the electric drum to rotate at a certain angle to realize the left and right sorting of the package.

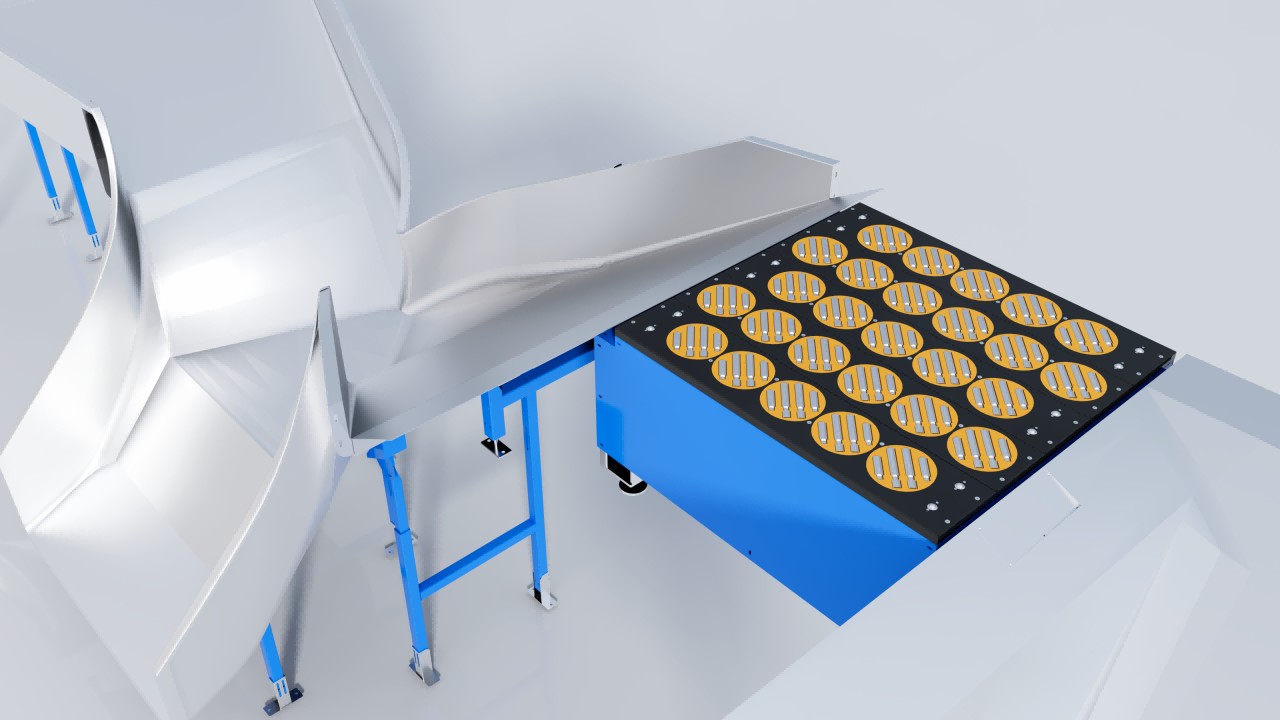

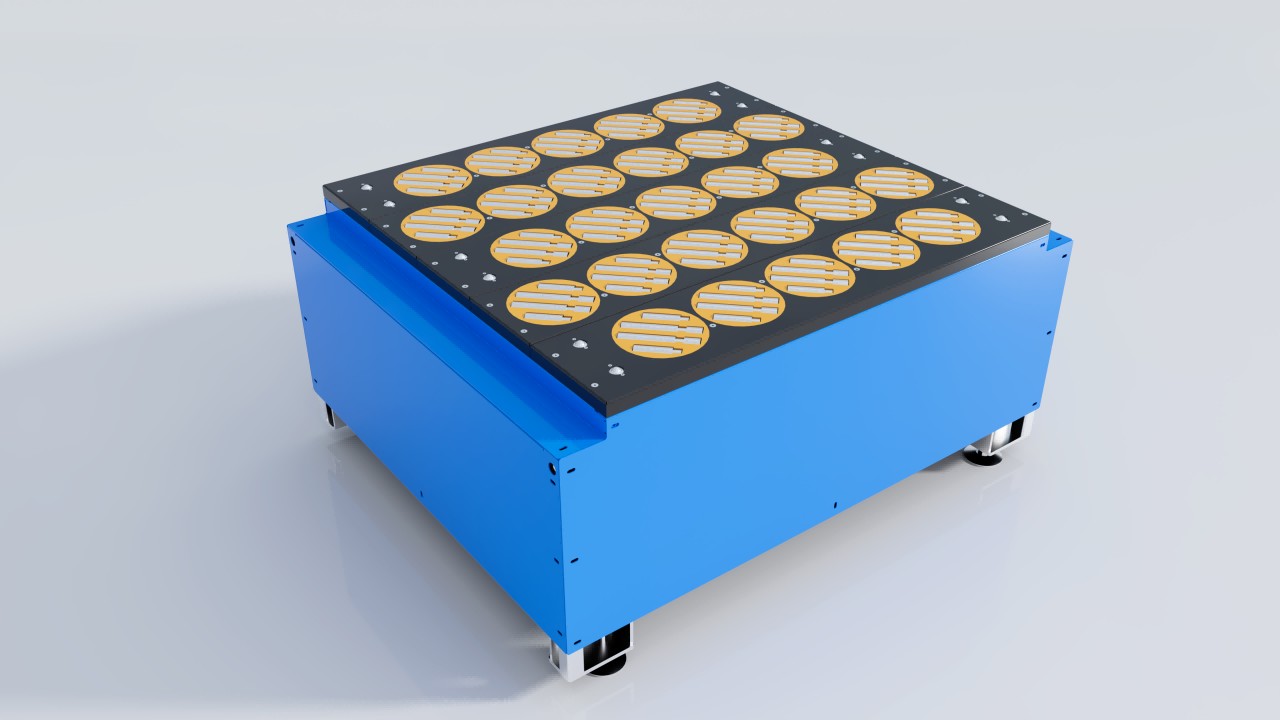

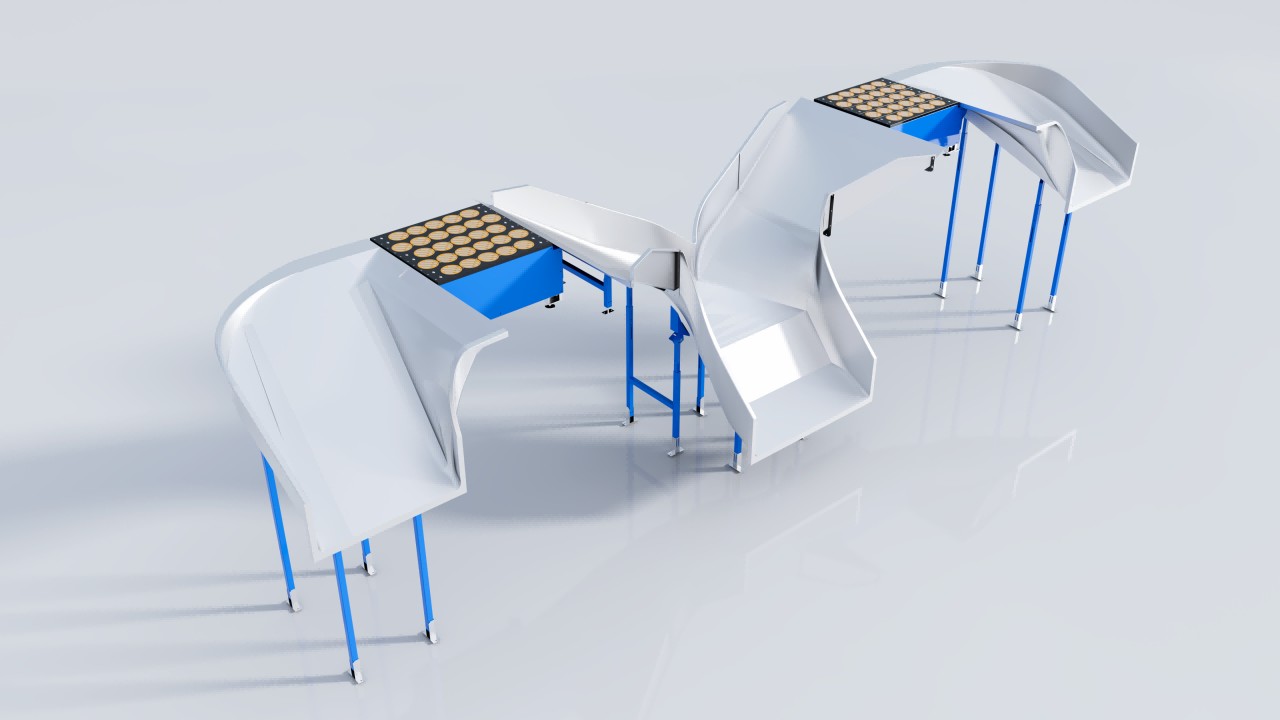

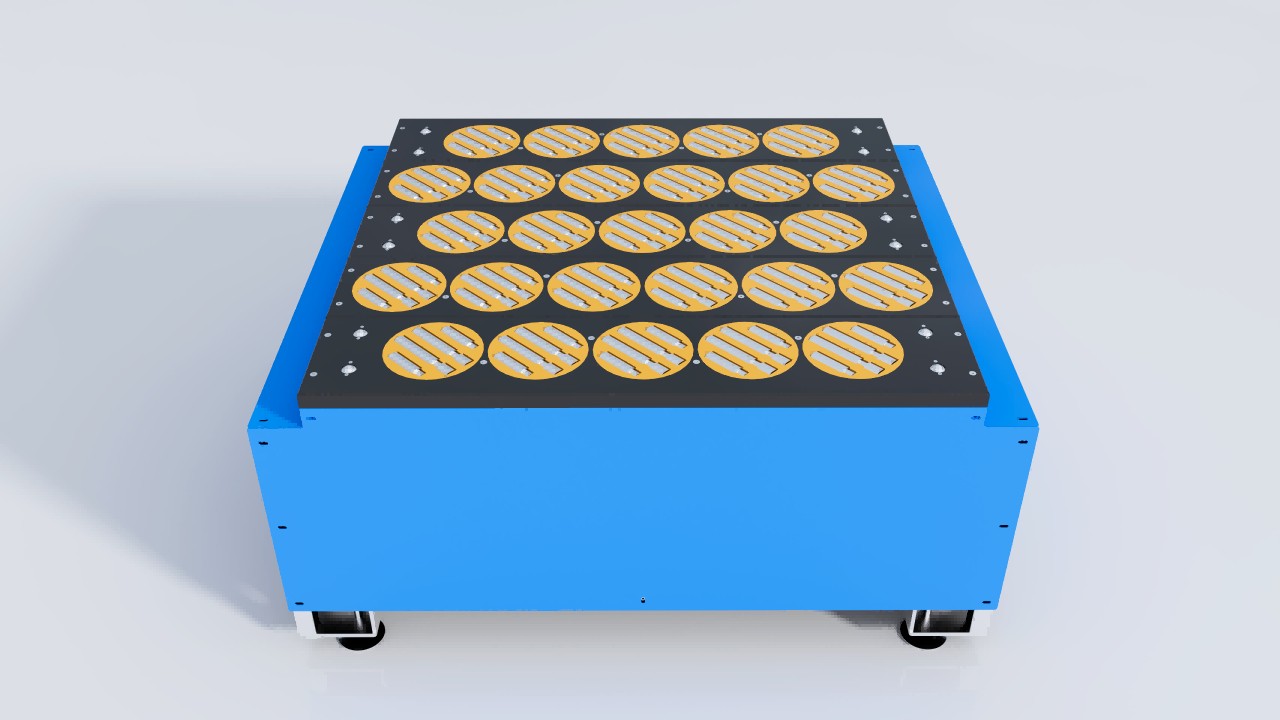

High-Speed Steerable Wheel Sorter
Description
Descripition
Specification
Solutions
Case
Application Method:
The electric drum provides the conveying power; the servo motor drives the link mechanism to provide the steering power, the steering angle: 0~60°, and the servo motor drives the link mechanism to drive the electric drum to rotate at a certain angle to realize the left and right sorting of the package.
Features of High-Speed Steerable Wheel Sorter
- High-speed operation and fast processing:The high-speed steerable wheel sorter can quickly sort items.
- High accuracy: High-speed steering wheel sorter accurately sorts items and places them in the correct output position.
- Wide range of applications:The high-speed steerable wheel sorter is suitable for handling items of all shapes and sizes.
- High efficiency: The high-speed steerable wheel sorter works quickly and efficiently to help improve efficiency in the logistics and warehousing sector.
- Autonomous Directional Control:The high-speed steerable wheel sorter features a steering wheel design that allows for autonomous directional control, resulting in increased flexibility and effectiveness in handling items.
These features make high-speed steerable wheel sorters widely used in logistics and warehousing to improve the efficiency and accuracy of item sorting effectively.
Application Areas for High-Speed Steerable Wheel Sorters
- Logistics and warehousing: Used for item classification and sorting, applicable to e-commerce, express delivery logistics, and other fields.
- Airport baggage sorting system: It can be used in airport baggage sorting systems to help airports improve baggage handling efficiency and accuracy.
- Other areas: The use of high-speed steerable wheel sorters is not limited to the sites mentioned above but can also be applied in different scenarios where items need to be sorted.
In short, high-speed steerable wheel sorters are widely used in various scenarios where sorting or sorting of items is required and bring higher value and sustainability to the industry by improving efficiency and accuracy.
| Specification | ||
| Equipment size | 1200(L)x1260(W)x500(H)mm | |
| Item size | Min: 150(L)x150(W)x15(H)mm | Max:1000(L)x1000(W)x800(H)mm |
| Item weight | ≤80kg/㎡ | |
| Efficiency | 4000 p/hour (based on the average length of 500mm) | |
| Sorting speed | 30-132 m/min (frequency) | |
Express Delivery System Integration
Through the actual situation of the express industry in terms of more stringent requirements for the inbound, unloading, receiving, scanning, X-ray machine security inspection, weighing, unpacking, sorting, packaging, and outbound fast loading of goods, PGSL, With the experience over 150 airport baggage conveying system projects and air cargo terminal projects around the world, has carried out in-depth cooperation with well-known international and domestic express companies. At the same time, according to the actual situation of technology, labor force and national policies in the domestic express delivery industry, it provides automatic and semi-automatic express delivery solutions of different standards for the express delivery industry, and accelerates the transformation and upgrading of customers in the express delivery industry.
Cainiao Cixi Sorting Project
-2000 meters long conveying system
-Full cycle of feeding, packing, transferring, and sorting are all included One inbound zone with 6 stations, a speed of 2.2m/s, and 10,560 PPH in actual use.
Shopee Dongguan Combined Warehouse
The equipment has reliable safety protection measures, the layout of the field equipment is reasonable, and the cross-beam connection between adjacent equipment is added to ensure the overall stability of the equipment. According to the characteristic of the product, the anti-pinch design is implemented.
