Application method: The whole equipment is driven by the sprocket chain through the deceleration motor of the driving section, and runs at a constant high speed in the closed-loop track. The sorting carrier corresponding to each item is regarded as a dynamic window, and the sorting machine automatically locates and tracks the real-time position of each window. When the goods arrive at the unloading chute where the specified address is located, the controller sends a signal, and the belt conveyor runs laterally in turn to sort the goods into the unloading chute to realize the accurate sorting of individual goods.

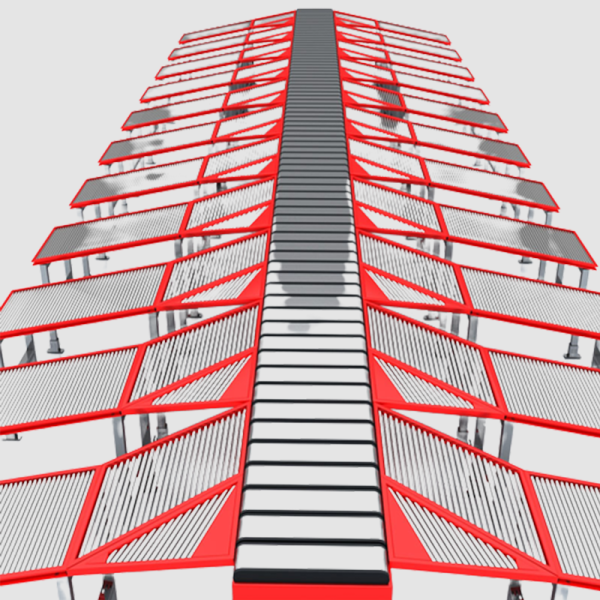

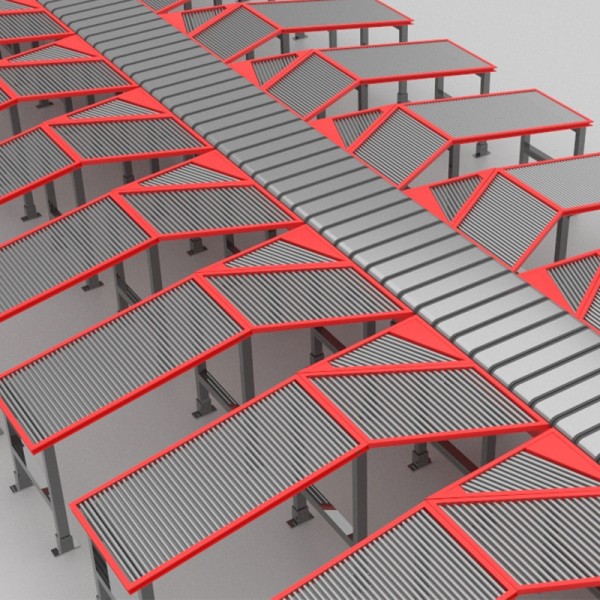

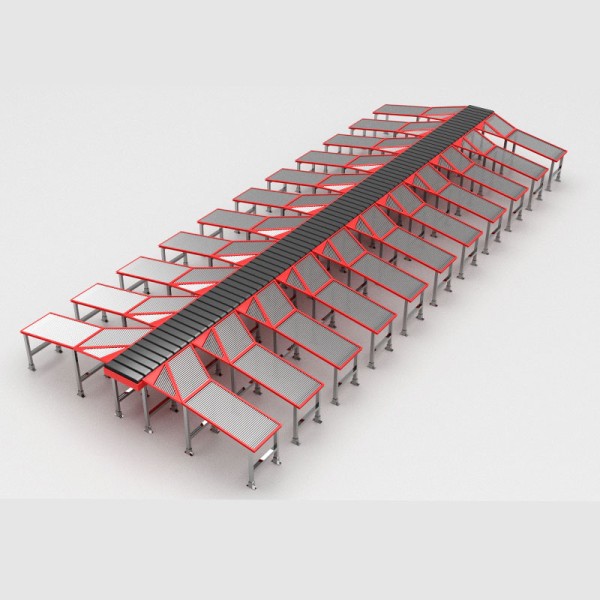

Narrow Belt Sorter
Description
Descripition
Specification
Solutions
Case
Application Method:
The whole equipment is driven by the sprocket chain through the deceleration motor of the driving section, and runs at a constant high speed in the closed-loop track. The sorting carrier corresponding to each item is regarded as a dynamic window, and the sorting machine automatically locates and tracks the real-time position of each window. When the goods arrive at the unloading chute where the specified address is located, the controller sends a signal, and the belt conveyor runs laterally in turn to sort the goods into the unloading chute to realize the accurate sorting of individual goods.
| Specification | |
| Efficiency | Length of item: 500mm, distance between items: 203mm, efficiency: ≥6000 p/hour |
| Noise | ≤78dB |
| Min item size (mm） | 150*150*30 |
| Max item size (mm） | 1300*1100*1000 |
| Min item weight | 100g |
| Max item weight | 60kg (each carrier can bear 20kg） |
| Min distance between items (mm) | ≥203 |
| Running speed | 0～150m/min |
| Sorting direction | Both left and right |
Express Delivery System Integration
Through the actual situation of the express industry in terms of more stringent requirements for the inbound, unloading, receiving, scanning, X-ray machine security inspection, weighing, unpacking, sorting, packaging, and outbound fast loading of goods, PGSL, With the experience over 150 airport baggage conveying system projects and air cargo terminal projects around the world, has carried out in-depth cooperation with well-known international and domestic express companies. At the same time, according to the actual situation of technology, labor force and national policies in the domestic express delivery industry, it provides automatic and semi-automatic express delivery solutions of different standards for the express delivery industry, and accelerates the transformation and upgrading of customers in the express delivery industry.
Cainiao Cixi Sorting Project
-2000 meters long conveying system
-Full cycle of feeding, packing, transferring, and sorting are all included One inbound zone with 6 stations, a speed of 2.2m/s, and 10,560 PPH in actual use.
Shopee Dongguan Combined Warehouse
The equipment has reliable safety protection measures, the layout of the field equipment is reasonable, and the cross-beam connection between adjacent equipment is added to ensure the overall stability of the equipment. According to the characteristic of the product, the anti-pinch design is implemented.
