Application method: Commonly used in horizontal or slightly upward inclined conveying lines. The driving device transmits the power to the drum to make it rotate, and the items are conveyed by the frictional force between the surface of the roller and the surface of the conveyed items.

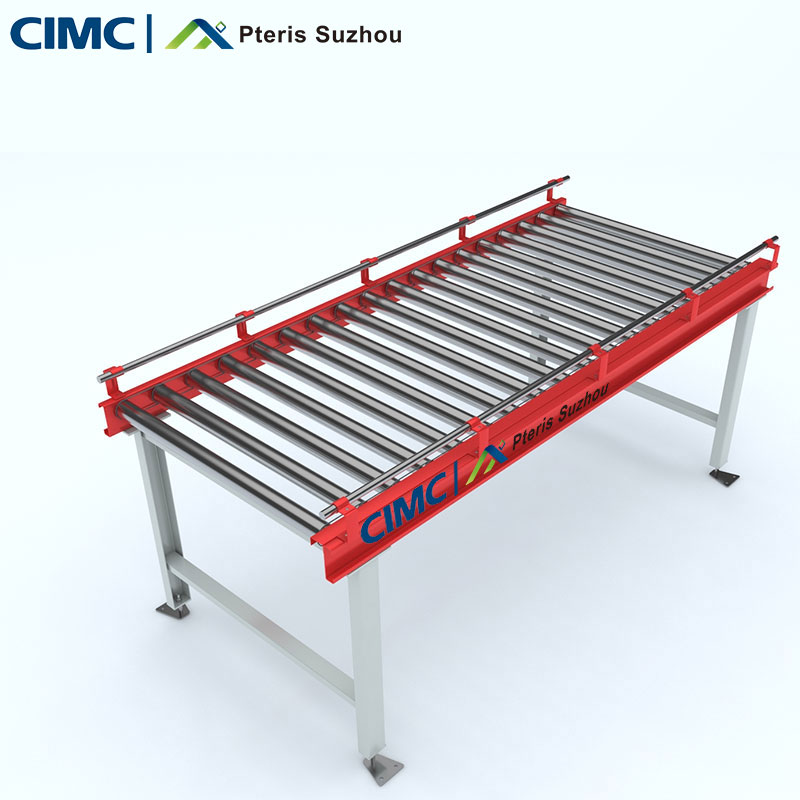

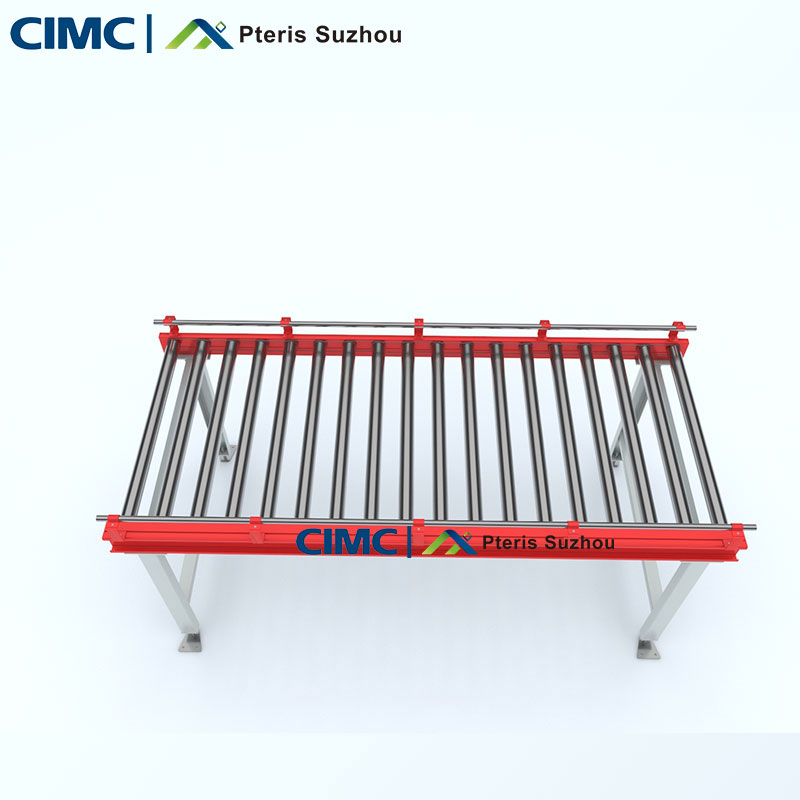

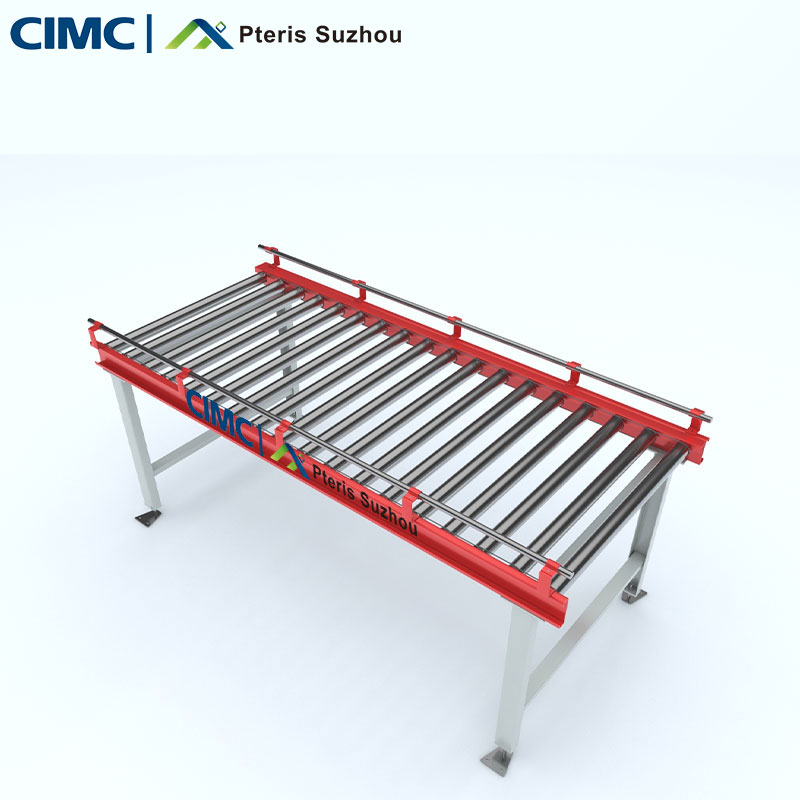

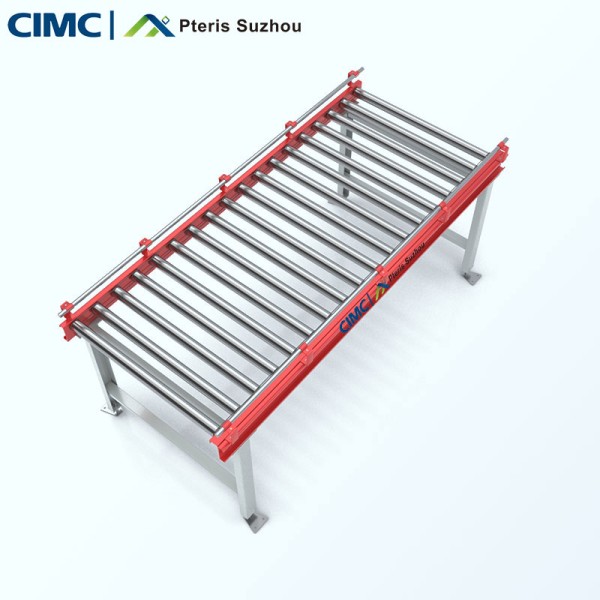

Powered Roller Conveyor
Description
Descripition
Specification
Solutions
Case
Application Method:
Commonly used in horizontal or slightly upward inclined conveying lines. The driving device transmits the power to the drum to make it rotate, and the items are conveyed by the frictional force between the surface of the roller and the surface of the conveyed items.
| Specification | |
| Conveying load | 30KG/M (max) |
| Item size | Depending on demand |
| Conveying width | Depending on demand |
| Drum diameter | 50mm |
| Drum center distance | 75mm，100mm，120mm |
| Drive mode | O-bend、V-ribbed belt、timing belt、single chain、double chain…etc. |
| Conveying speed | 10-35m/min |
| Drive power | 0.25-1.5kw |
Express Delivery System Integration
Through the actual situation of the express industry in terms of more stringent requirements for the inbound, unloading, receiving, scanning, X-ray machine security inspection, weighing, unpacking, sorting, packaging, and outbound fast loading of goods, PGSL, With the experience over 150 airport baggage conveying system projects and air cargo terminal projects around the world, has carried out in-depth cooperation with well-known international and domestic express companies. At the same time, according to the actual situation of technology, labor force and national policies in the domestic express delivery industry, it provides automatic and semi-automatic express delivery solutions of different standards for the express delivery industry, and accelerates the transformation and upgrading of customers in the express delivery industry.
Cainiao Cixi Sorting Project
-2000 meters long conveying system
-Full cycle of feeding, packing, transferring, and sorting are all included One inbound zone with 6 stations, a speed of 2.2m/s, and 10,560 PPH in actual use.
Shopee Dongguan Combined Warehouse
The equipment has reliable safety protection measures, the layout of the field equipment is reasonable, and the cross-beam connection between adjacent equipment is added to ensure the overall stability of the equipment. According to the characteristic of the product, the anti-pinch design is implemented.
